600mm/600mm OA Steel Panels
OA 600 Network Raised floor Structure::
Net floor with wire groove is made of good quality cold-rolled steel sheets which are punched,spot-welded.
Description:
OA panels come with 90 degree deep drawn beam corners, filled with high strength cement. Any load placed on the panel will be transferred to the panel corners berfor traveling through the pedestals to the subfloor. Though deep drawn beam corner is a difficult manufacturing process, it is done in order to achieve the ultimate loading capacity necessary to prevent bending upwards of corners or dishing panels. Cement is filled using a high pressured pump to ensure that sufficient cement mix reaches all corner of the panel.
Feature:
1. Grade: 800lb, 1000lb, 1250lb.
2. 32 Reverse strcuture embossments.
3. 60 Perimeter Welds as compared to 40 in earlier design.
4. After welding, each panel is put into a flattening press and checked for flatness.
5. Fireproof: ASM E84-01 Flame spread:0 Smoke Density:0

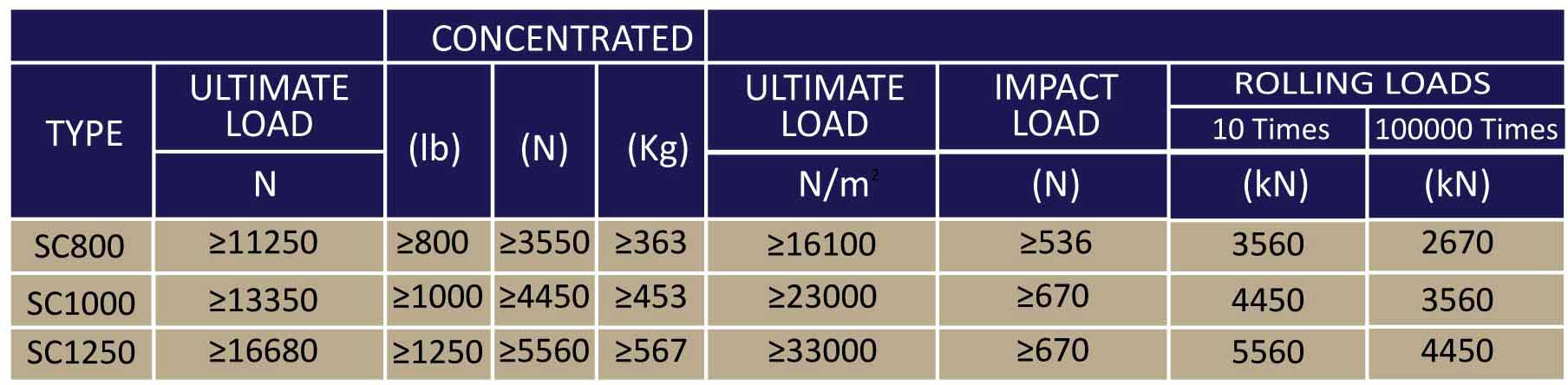

Type & Technology parameter:
